ECA weld inspection

New eddy current array instrument works with different design of ECA probe helps to solve the weld or plate testing problem well.

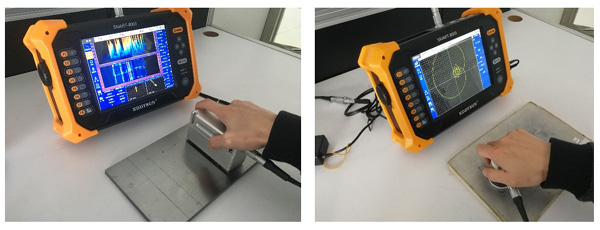

SMART-8003

• 32-64 channels (optional) of eddy current array
• Welding inspection with no direction limit
• Compensation for lifting and shaking
• Distinct inspection for crack depth
• Special alarm mode of unequal amplitude and phase

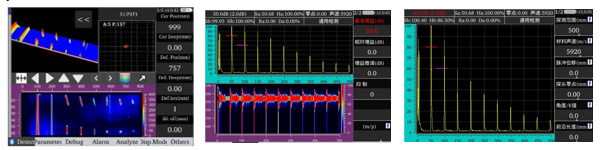

• Various display modes: impedance display, time-base scanning display, time-base superposition display, ECA scanning (B/C) 2D/3D imaging display
• Enable to preset special process parameters for further use
• Easy to operate, optional language of Chinese and English
• Data acquisition of C scanning
• Designed with 8 mixing units to separate and suppress multiple interfering signals at the same time

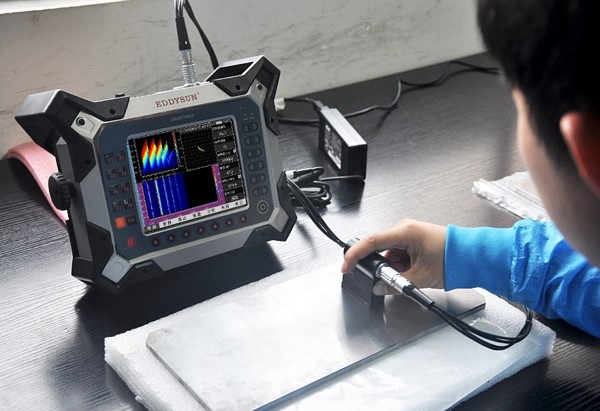

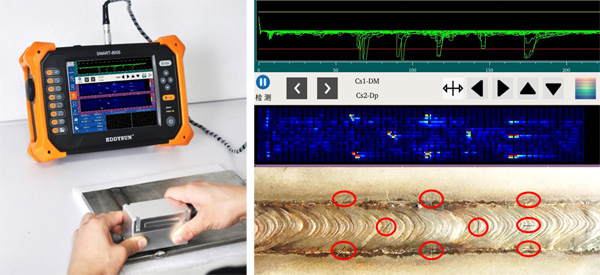

SMART-8005

SMART-8005  is designed for flaw inspection of metal material, and for sorting of alloy, heat treatment condition and thickness. It has multi-functions of eddy current array (ECA), remote field testing (RFT), metal magnetic memory (MMM), magnetic flux leakage (MFL), high sensitivity high-resolution UT, swept frequency, MIA.

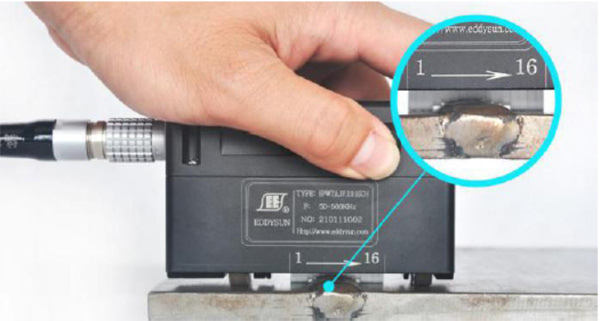

ECA Probe

Eddy current array probe is customized according to specific testing demands.

The probe can be made with no direction limit, that is cracks at 0 degree, 90 degree and even 45 degree can be well detected.

The inspection area by one scaning can cover the whole weld width depending on the probe channels.

And the probe head is flexible to make good protection to the probe.

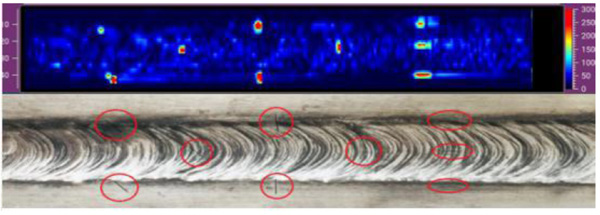

Inspection of carbon steel

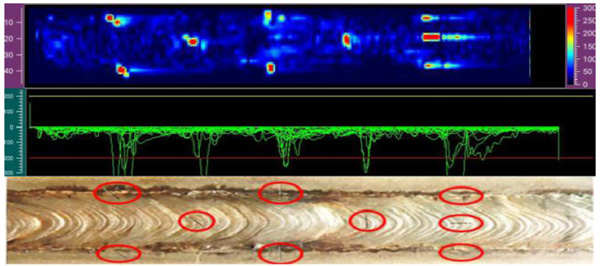

Inspection of aluminum

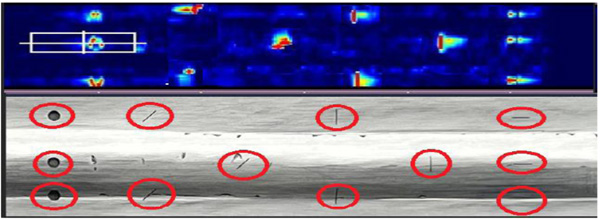

Inspection of stainless steel
