Eddy Current Array (ECA) - EDDYSUN SMART-5001

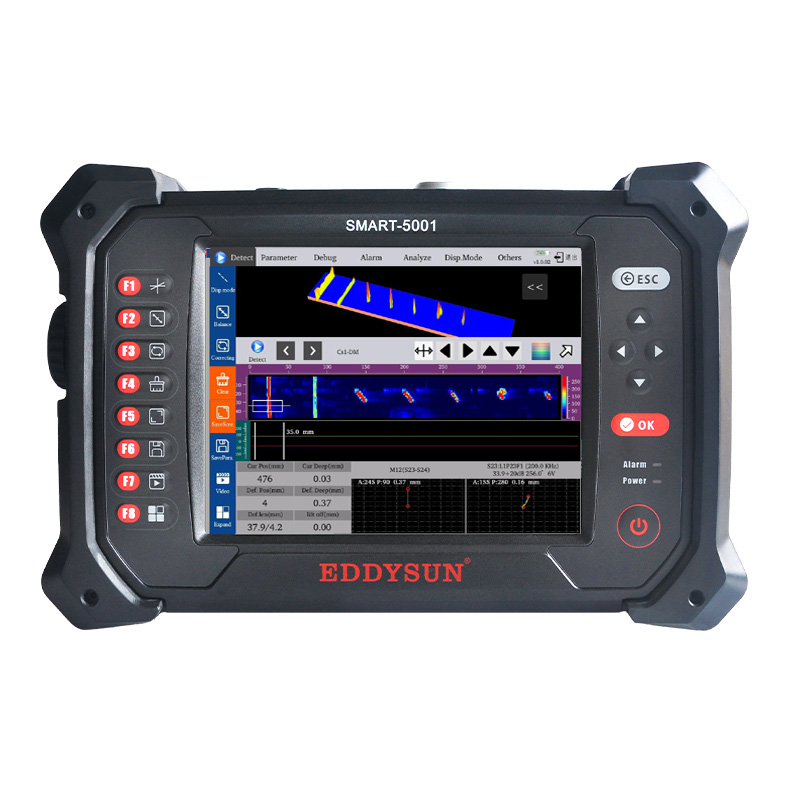

SMART-5001 is a multi-frequency eddy current array flaw detector. It is designed for flaw inspection of metal material, and for sorting of alloy, heat treatment condition and thickness. Results from different inspection methods make engineers easy to analyze and easy to verify. This helps to obtain a more objective and true evaluation. The application fields including aviation, aerospace, electric power, nuclear industry, metallurgy, shipbuilding, and petrochemical industry, automobile and so on.

01  EDDY CURRENT ARRAY

·      64 channels of eddy current array

·      Welding inspection with no direction limit

·      Compensation for lifting and shaking

·      Distinct inspection for crack depth

·      Special alarm mode of unequal amplitude and phase

·      Various display modes: impedance display, time-base scanning display, time-base superposition display, ECA scanning (B/C) 2D/3D imaging display

·      High definition and sensitivity

·      Easy to operate, optional language of Chinese and English

·      Data acquisition of C scanning

·     Enable to test wall thickness reduction of tube, surface inspection, depth measurement, thickness measurement of coating and cladding on metal surface, sorting of metal material and hardness

·      Designed with 16 mixing units to separate and suppress multiple interfering signals at the same time

·      Various filter modes

·      Enable to preset special process parameters for further use

·      Various ways of storing data

·      Provide the function of multi-frequency inspection configuration analysis

·      Video inspection is available at the same time of eddy current testing.

02  OTHER FEATURES

·      Testing parameters and data can be saved, and reports can be exported in PDF\EXCEL\WORD format

·      Designed with satellite positioning function

·      The testing signal all through the inspection process can be saved and replayed

·      Integrated with video inspection for visible surface defects

·  To minimize personal error, SMART-5001 has functions of real-time menu prompt, man-machine interaction, touch screen operation, and keyboard/mouse operation

·      Built-in lithium battery to operate more than 4 hours

03  TECHNICAL SPECIFICATION
