MFL Manual Scanning System MFL-4016

MFL-4016 MFL Manual Scanning System is designed to check and measure corrosion and thickness decrease of ferrous-magnetic pipes and tank bottom plates by hand. This device is available to inspect 4-10mm thickness defects for pipes and plates by using the advanced magnetic material with high remanence and high coercivity. With small body and easy operation, MFL-4016 is capable of inspecting the corners of tank by hand.

KEY FEATURES

· 16 channels of MFL scanning

· Fast scanning with high sensitivity, no need surface pretreatment before testing

· Built in with high-performance lithium battery for working more than 8 hours per charge

· Interface: USB, network, encoder port

· High resolution TFT LCD display

· Easy operation, language in Chinese / English

· Testing report is available, and the testing data can be stored and analyzed in PC

· Capable of inspecting the corners of the tank to improve the testing coverage

· Available to run forward or backward with hand scanning, it can go into small hole (diameter ≥450mm) to do inspection

· Working voltage not more than 24V for tank safety request

· Alarm for defect signal out of accepted range, and alarm for low battery

· Real-time data acquisition, analysis, defect location and defect percentage identification

TECHNICAL SPECIFICATION

PURCHASE INCLUDES

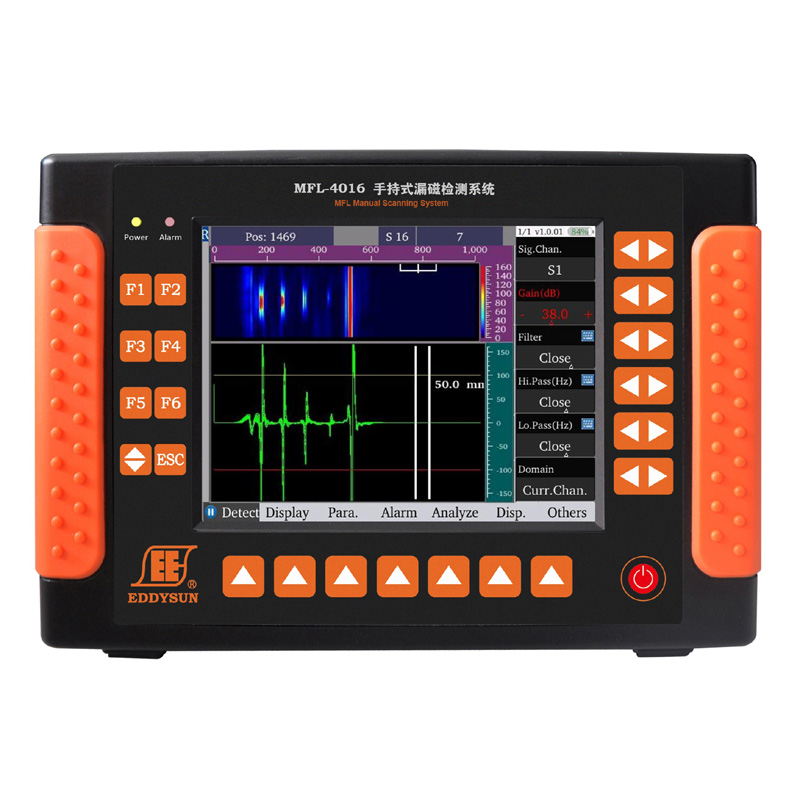

No.1 of MFL instruement

No.1 of MFL manual trolley with probe and magnetic device

No.2 of probe cable

No.1 of scanning and analysis software

No.1 of battery charger

No.1 of quality certificate and user manual

No.1 of instrument case

One year warranty for MFL instrument
