The best choice for tank inspection with high cost performance. Design with 32-channel MFL array, touch screen with resolution 1920*1200, folding design for easy transport and storage, and report can be automatically created for each tank bottom plate to show the corrosion degree and the position of each defect.
Tank-4000 tank bottom inspection system is designed to check and measure tank floor corrosion and thickness decrease of tank bottom plate. This storage tank scanner improves the complete inspection process with industrial touch integrated computer, reliable and stable performance, high sensitivity and high efficiency. The structure is optimized with embedded system module, six-wheeled design and new arm structure.
KEY FEATURES
· 32 channels, max scan width 300mm
· Real-time data acquisition, analysis, defect location and identification
· IP65 grade industrial tablet, capacitive touch screen with resolution 1920*1200
· Folding design for easy transport and storage

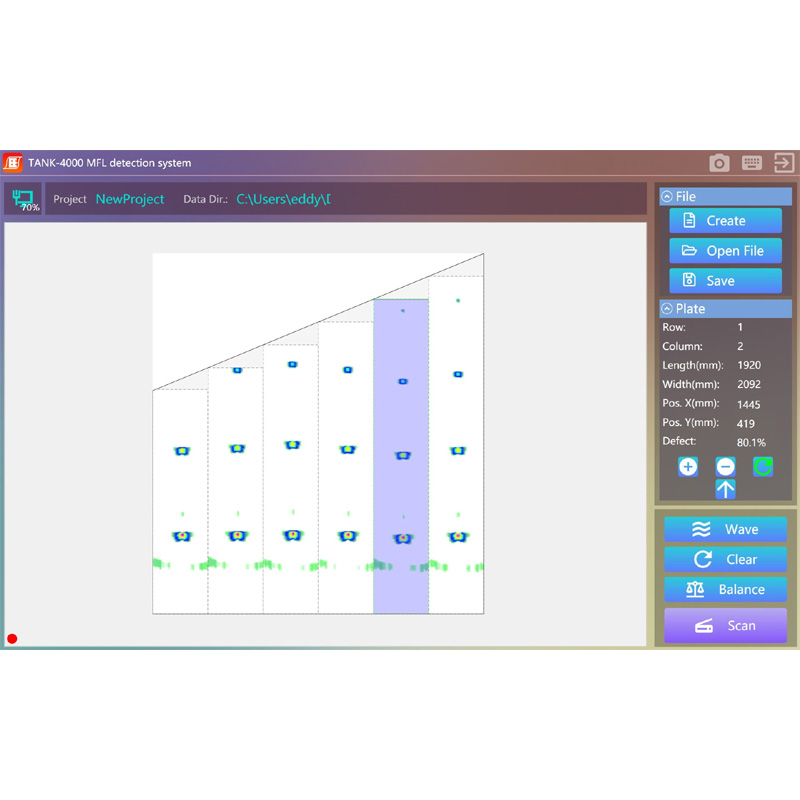

· Tank-4000 software enables real-time scanning and imaging, defect location, automatic indication of corrosion with different colors

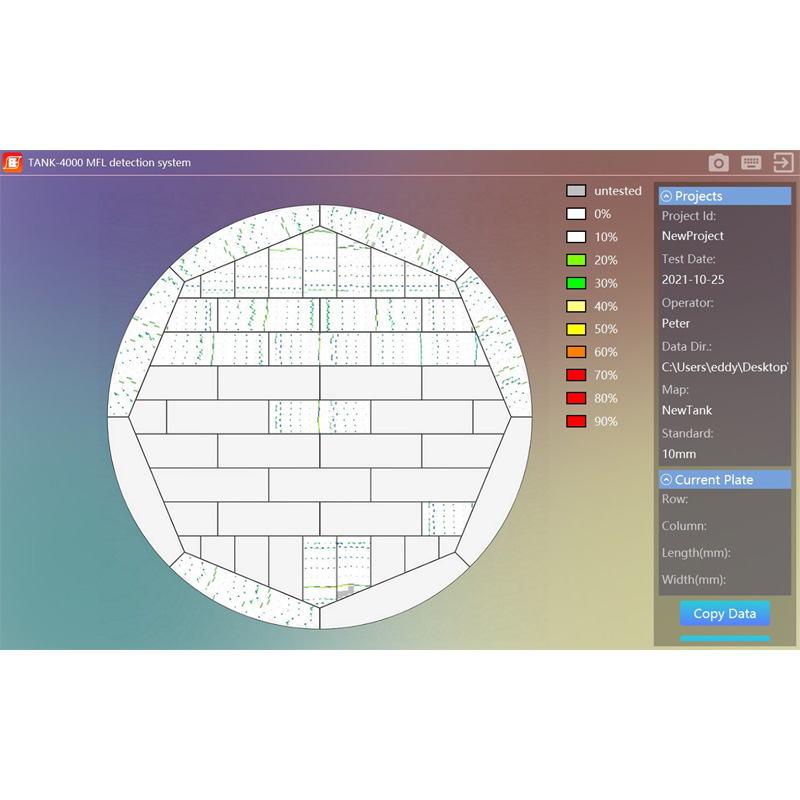

· Floormap drawing simplifies the inspection process, and improves the inspection efficiency
· Drive system: easy to operate, intelligent control, automatically power off for low power
· Powered by UL94V-0 grade lead acid batteries and 12V voltage for tank safety request
· High integration with all cables inside the machine
· Alarm for defect signal out of accepted range, and for low battery
· Report automatically created for each tank bottom plate to show the corrosion degree and the position of each defect
TECHNICAL SPECIFICATION
|
MFL/ECT SPECIFICATION |
|
|
Channel |
32 channels |
|
Scan width |
300mm |
|
Max sensitivity |
40% material loss for 16mm thick plate |
|
Drive method |
Manual drive, or integrated electric drive |
|
Thickness range |
4 up to 16mm |
|
Positional accuracy |
±5mm |
|
Display screen |
IP65 grade industrial tablet, capacitive touch screen with resolution 1920*1200 |
|
Analysis software |
Real-time acquisition and report analysis |
|
Imaging method |
A scan, C scan, floor mapping |
|
Report |
To show the whole floor map, to indicate the defect number and the location of defects for each plate, to analyze the shape and the size of each defect, to indicate the corrosion degree with different colors |
|
Data storage |
Data saved in PC hard drive (256G) or external storage device |
|
Alarm output |
Alarm for defect signal out of accepted range, and for low battery |
|
OTHER SPECIFICATION |
|
|
Power requirements |
DC 12V, 12V 38AH sealed lead acid batteries |
|
Typical battery operational time |
Up to 8 hours |
|
Weight |
71kg including battery of 12.5kg |
|
Operating temperature |
-20°C to +55°C |
|
Storage temperature |
-20°C to +50°C |
|
Relative humidity |
≤85% |
TANK-4000ME is a tank bottom inspection system with topside and bottomside indications. Floormap drawing and automatic report creation make the inspection result easy to analyze. The structure is optimized with embedded system module, six-wheeled design and new arm structure.
