TANK-4000ME is a tank bottom inspection system with topside and bottomside indications.
Floormap drawing and automatic report creation make the inspection result easy to analyze.
The structure is optimized with embedded system module, six-wheeled design and new arm structure.
Tank-4000ME tank bottom inspection system is designed to check and measure corrosion and thickness decrease of tank bottom plate. The system improves the complete inspection process with industrial touch integrated computer, reliable and stable performance, high sensitivity and high efficiency.
KEY FEATURES
• Enable to determine whether the corrosion is top side or bottom side
• 64 channels with 32-chan. mfl and 32-chan. ect for top and bottom discrimination
• Real-time data acquisition, analysis, defect location and identification
• Variable speeds between 500mm/s-700mm/s
• IP65 grade industrial tablet, capacitive touch screen with resolution 1920*1200
• Folding design for easy transport and storage
• Tank-4000ME software enables real-time scanning and imaging, defect location, automatic indication of corrosion with different colors

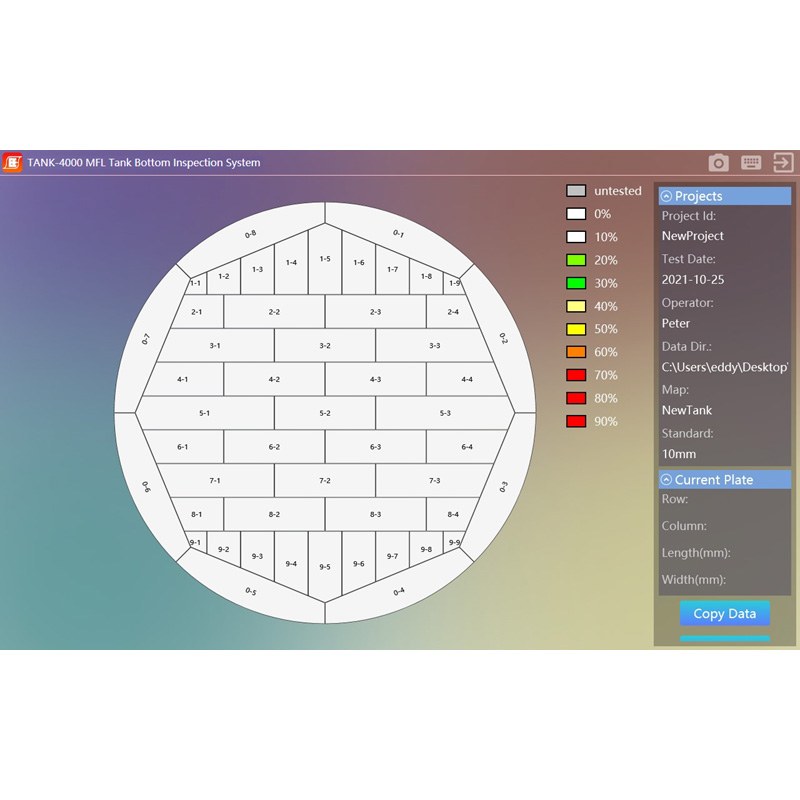

• Floormap drawing simplifies the inspection process, and improves the inspection efficiency
• Drive system: easy to operate, intelligent control, automatically power off for low power
• Powered by UL94V-0 grade lead acid batteries and 12V voltage for tank safety request
• High integration with all cables inside the machine
• Alarm for defect signal out of accepted range, and for low battery
• Report automatically created for each tank bottom plate to show the corrosion degree and the position of each defect
TECHNICAL SPECIFICATION
|
MFL/ECT SPECIFICATION |
|
|
Channel |
64 channels with 32-chan. mfl and 32-chan. ect for top and bottom discrimination |
|
Top and bottom discrimination |
Enable to determine defect is top side or bottom side, and the defect location |
|
Scan width |
300mm |
|
Scan speed |
Variable between 500mm/s-700mm/s |
|
Max sensitivity |
40% material loss for 16mm thick plate |
|
Drive method |
Manual drive, or integrated electric drive |
|
Thickness range |
4 up to 16mm |
|
Positional accuracy |
±5mm |
|
Display screen |
IP65 grade industrial tablet, capacitive touch screen with resolution 1920*1200 |
|
Analysis software |
Real-time acquisition and report analysis |
|
Imaging method |

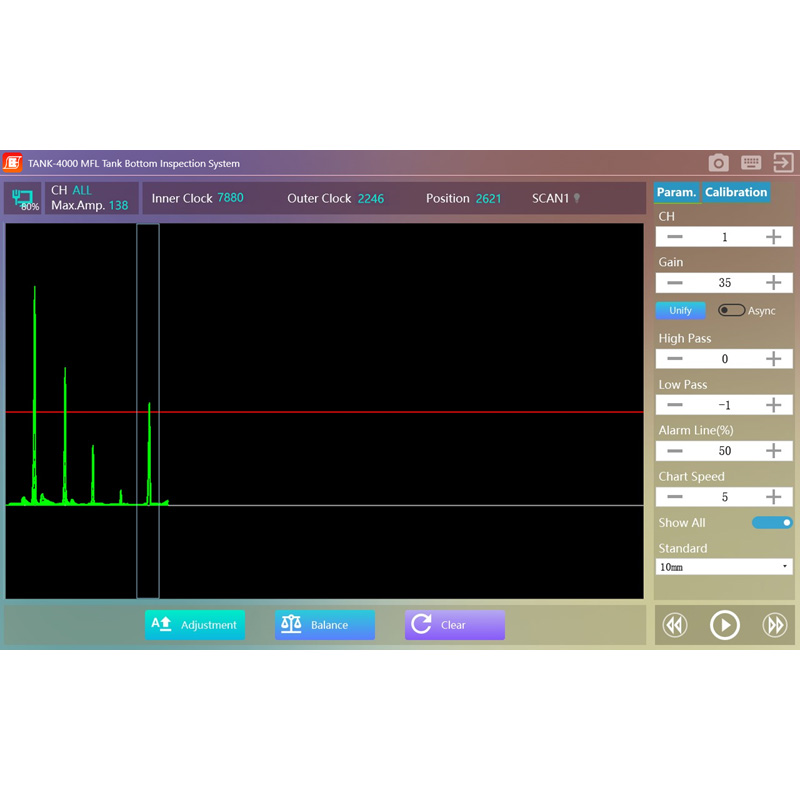

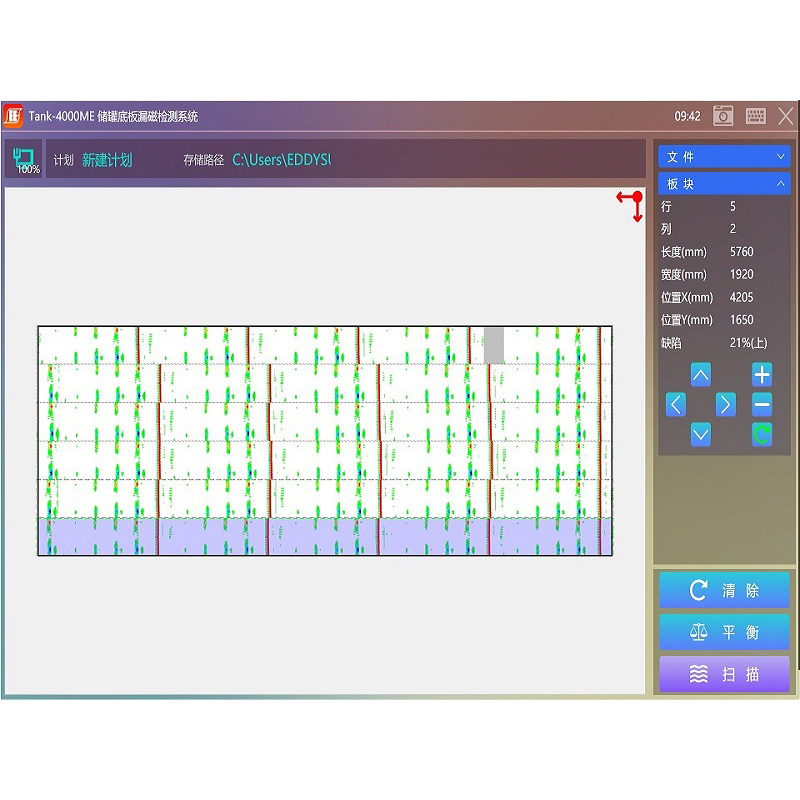

A scan, C scan, floor mapping |
|
Report |
To show the whole floor map, to indicate the defect number and the location of defects for each plate, to analyze the shape and the size of each defect, to indicate the corrosion degree with different colors |
|
Data storage |
Data saved in PC hard drive (256G) or external storage device |
|
Alarm output |
Alarm for defect signal out of accepted range, and for low battery |
|
OTHER SPECIFICATION |
|
|
Power requirements |
DC 12V, 12V 38AH sealed lead acid batteries |
|
Typical battery operational time |
Up to 8 hours |
|
Weight |
71kg including battery of 12.5kg |
|
Operating temperature |
-20°C to +55°C |
|
Storage temperature |
-20°C to +50°C |
|
Relative humidity |
≤85% |
TANK-4000ME is a tank bottom inspection system with topside and bottomside indications. Floormap drawing and automatic report creation make the inspection result easy to analyze. The structure is optimized with embedded system module, six-wheeled design and new arm structure.
